Product Specifications
| Effective Width | 383mm |
| Panel Thickness | 16mm / 20mm |
| Length | Custom (Max. 7000mm) |
| Surface Material | Al-Zn Coated Steel |
| Core Material | Polyurethane (PU) |
| Back Material | Aluminum Foil |
| Surface Treatment | High Weather Resistant Paint |
| Fire Rating | B1 / B2 (Optional) |
| MOQ | 1000㎡ / Color |
| Application | Exterior Wall Cladding |

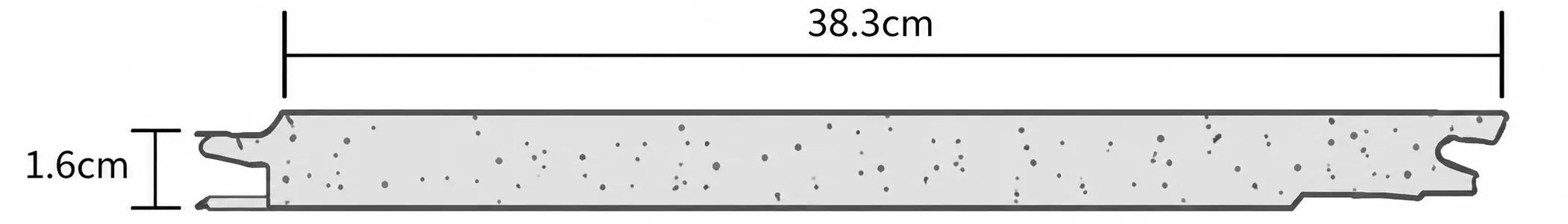

Panel Cross Section (38.3cm Effective Width)
High Weather Resistant Coating
Multiple colors and wood grain available, long lasting.
Al-Zn Coated Steel (AZ150)
High strength, anti-corrosion and anti-rust.
Polyurethane (PU) Core
High density insulation, energy saving and heat insulation.
Aluminum Foil Backing
Moisture-proof and heat insulation enhancement.
Why Choose Our Insulated Metal Siding?
|
Features |
Our Insulated Metal Siding |
Traditional Metal Siding |
|---|---|---|
| Installation |
Interlocking design, easy & fast |
Complex installation, time-consuming |
| Insulation |
PU core, excellent thermal insulation |
No insulation |
| Weight |
Lightweight
|
Heavy |
| Appearance |
100+ wood grain & color options |
Limited colors |
| Durability |
Anti-corrosion, anti-fade, long lifespan |
Easy to rust and fade |
| Maintenance |
Low maintenance
|
High maintenance |
| Overall Cost |
Cost-effective
|
Higher total cost |
PRODUCT ADVANTAGES
Excellent Thermal Insulation
PU core helps reduce heat transfer, keeping buildings warmer in winter and cooler in summer.
Durable & Long Lifespan
Galvalume steel and protective coating provide corrosion resistance and long-term durability.
Lightweight & Easy to Install
Interlocking edges help speed up installation and reduce labor cost.
Beautiful & Versatile Appearance
100+ wood grain, stone, brick, and solid color finishes match different architectural styles.
Cost-Effective Solution
Lower installation and maintenance costs help improve overall project value.
Available colors
Metal Siding Accessories Overview
Our metal siding system includes complete matching trims and accessories for corners, joints, windows, doors, and finishing edges - ensuring clean installation, weather protection, and a professional exterior appearance.
Installation Guide
|
|
FAQ
Q: What is insulated metal siding panel?
A: Insulated metal siding panel is a decorative exterior wall cladding made of coated steel, PU insulation core, and aluminum foil backing.
Q:Is it waterproof?
A: Yes. The interlocking joint system and coated steel surface help resist rainwater and moisture.
Q: How long does it last?
A: Yes. The coated metal surface offers moisture resistance, UV resistance, and outdoor durability.
Q:How to install insulated metal siding panel?
A: Install starter strip first, then interlock each panel one by one and fasten with screws.
Q:What is your MOQ?
A: Our standard MOQ is 1000 square meters per color.
Q: Can I get a sample?
A: Yes. Free samples are available, while courier cost is paid by buyer.
