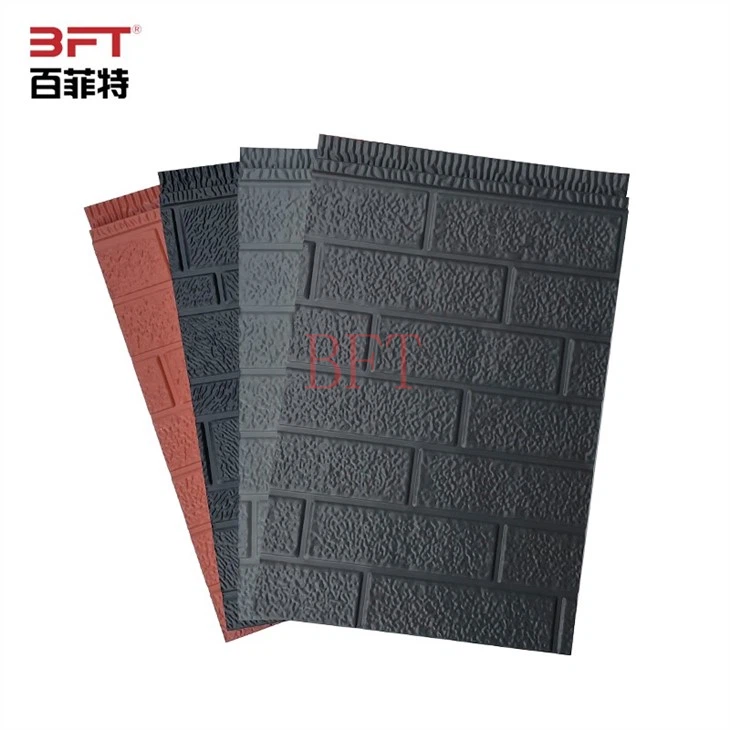

Polyurethane Insulation Panels

Internal product code: QZ-602



Product name	polyurethane insulation panels	Certificate	ISO9001,CE
Thickness	16mm/20mm,5/8inch,25/32inch	Fire resistance level	B1/B2
Width	383mm,15 5/64 inch	Size Tolerance	-/+2mm
Length	2000mm~6000mm,78 47/64 inch ~ 236 7/32 inch	Tensile bond strength	0.17MPA
Surface steel	Galvalume, C type	Wind load value	9KPA

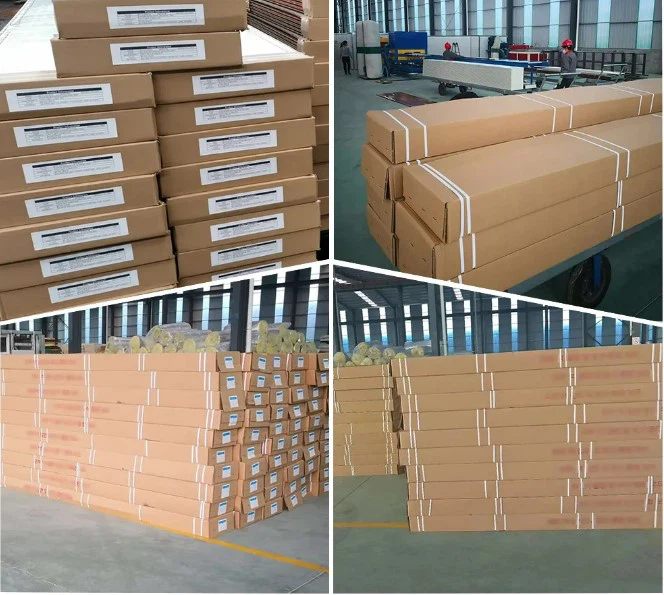

Steel alloy composition	Aluminum 55%, Zinc 43.5%, Silicon 1.5%, etc.	Package	10 pieces/cartons
Steel coating	HDP,>30um	Package Size	4010mm*41mm*170mm(10 pieces/carton)
Core material	Polyurethane,40kg/m3	OEM	Logo and panel size
Closed cell rate	90%~95%	Container load	20GP:1600sqm(panel length 1.82m)40HC/HQ : 3800 sqm (panel length:3.8m).40NOR:3300 sqm(panel length:3.8m).
Bottom material	Aluminum foil glass fiber	Warranty	5 years
The thickness of the bottom material	0.26mm	After-sale Service	Online training, online technical support
Panel weight	3.5~3.7kg/m2	Port	QINGDAO\Ningbo\Tianjin
R-VALUE	0.55 m2*k/w	Payment	L/C\Western Union\D/P\D/A\T/T\MoneyGram
Heat conductivity	0.024 w/m*k(in theory)	Brand	BFT

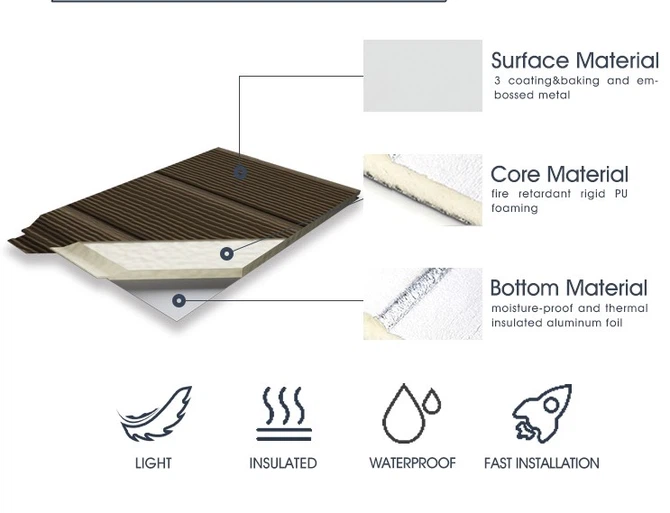

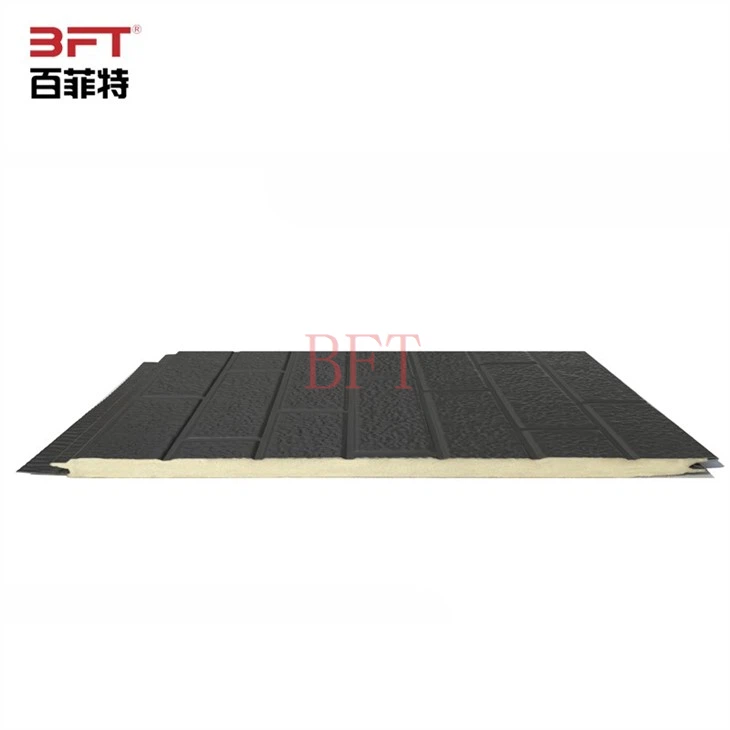

The outer layer is a color-coated steel strip, with hot-dip galvanized steel as the substrate.

The core of polyurethane insulation panels is rigid polyurethane foam.

The back of polyurethane insulation panels uses glass fiber aluminum foil cloth, which is essentially different from ordinary aluminum foil.

The installation of polyurethane insulation panels is relatively straightforward, with the following steps:

1. Site preparation: The site must be prepared by clearing any debris, marking out panel locations, and ensuring the building structure is sound.

2. Panel placement: Panels are then placed onto the structure and secured using screws and fasteners.

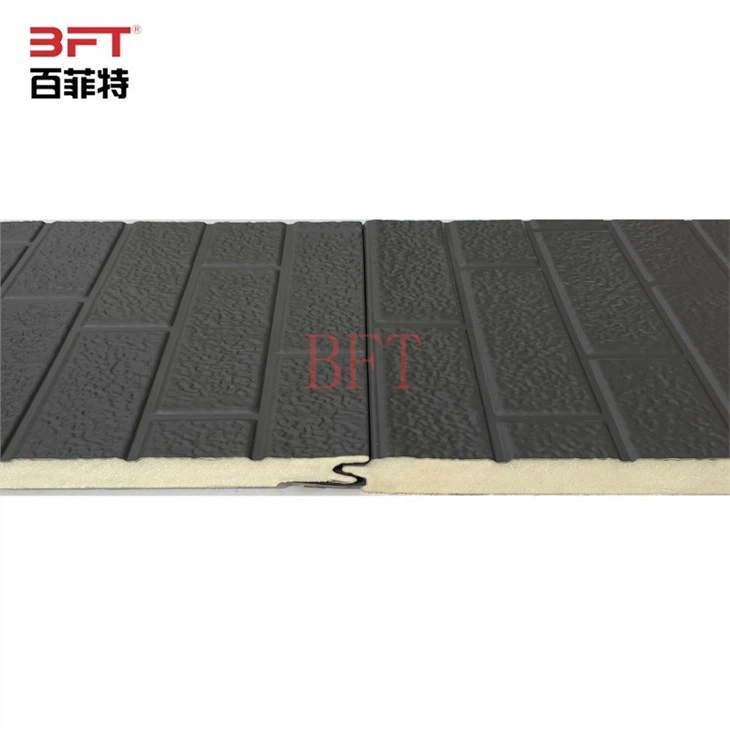

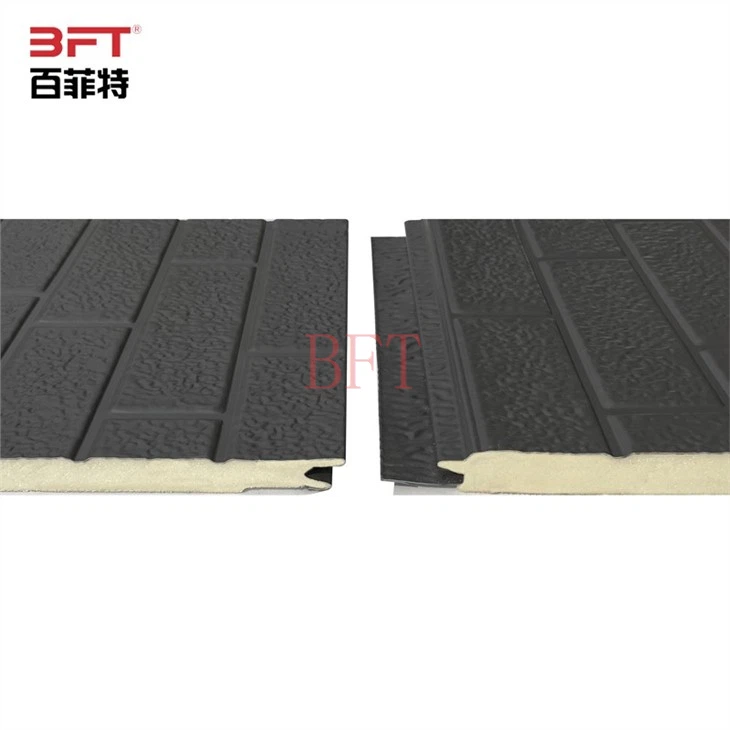

3. Panel joints: Panel joints are sealed using adhesive tape or specialized sealing materials, ensuring a water-tight seal.

4. Flashings: Flashings are added around the panel edges to prevent water ingress.

5. Finishing: Once the panels are installed, any finishing touches, such as guttering, can be added to complete the installation.



The foam core of polyurethane insulation panels provides excellent insulation properties, with a low thermal conductivity ranging from 0.02 to 0.05 W/mK. This makes PU panels an effective thermal barrier, preventing heat loss in winter and heat gain in summer. Additionally, the foam core is water-resistant, preventing moisture buildup and condensation. PU panels also have good sound insulation properties, reducing noise pollution from outside the building.

Rigid polyurethane foam is fireproof, flame retardant, and high-temperature resistant. After adding a flame retardant, polyurethane is a kind of flame retardant self-extinguishing material. Its softening point can reach more than 250 degrees Celsius, and it will decompose only at higher temperatures: in addition, polyurethane will burn in its foam when it burns. A carbon deposit forms on the surface, which helps insulate the foam below. Can effectively prevent the spread of flames. Moreover, polyurethane does not produce harmful gases at high temperatures.

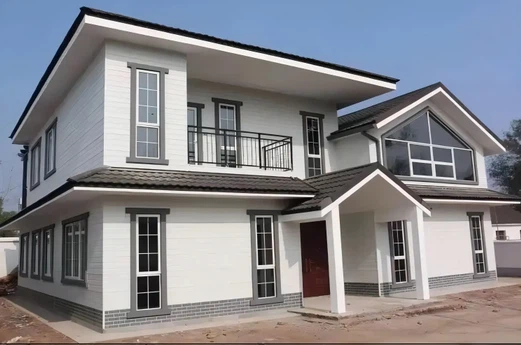

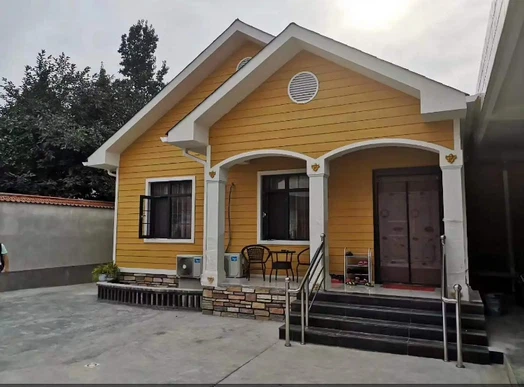

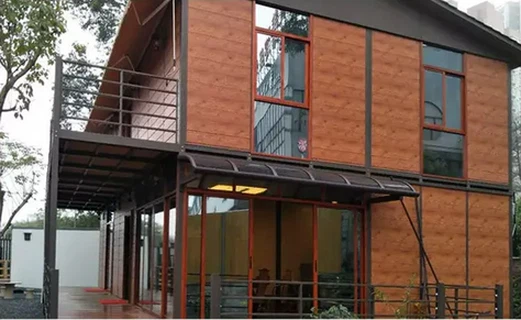

Polyurethane insulation panels are a cost-effective and efficient insulation material used in a variety of buildings. Their excellent insulation properties, durability, water resistance, and low maintenance make them popular in the construction industry. Additionally, their versatility means they can be used for both roof and wall insulation, providing a high level of thermal and sound insulation. The installation of PU panels is relatively simple and can be completed quickly, reducing installation time and costs. Overall, polyurethane insulation panels are an excellent option for building insulation, providing long-lasting protection against the elements.





1. Q: Are you a manufacturer or a trading company?

A: We are a polyurethane insulation panels manufacturer with 15 years of professional experience in this field.

2. Q: What is your minimum order quantity?

A:1000 square meters.

3. Q: delivery date?

A: According to your quantity. Taking 40HQ as an example, the goods will be delivered within 15 days after the advance payment.

4. Q: Are samples available, are they free?

A: Yes, the samples are free, but you need to pay for shipping. If you order products from us, the shipping cost will of course be refunded to you.

5. Q: What if we still need accessories?

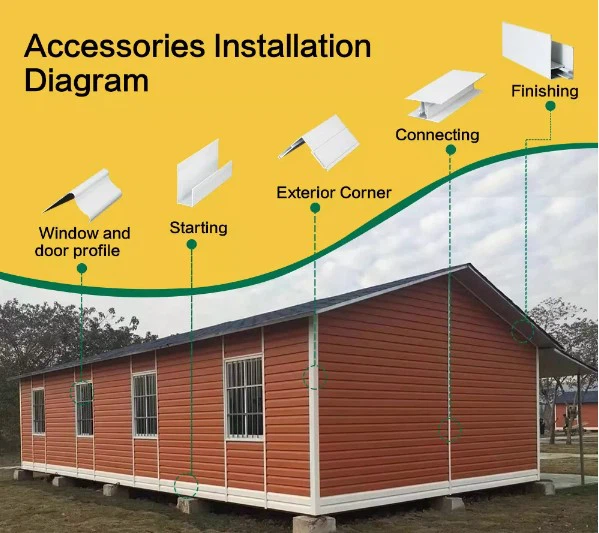

A: U-shaped groove base, inner and outer corners, aluminum profiles, and other accessories can be provided.

6. Q: What are your payment terms?

A: T/T performs an invoice that has a 30% deposit, and the balance before shipment is 70%.

7. Q: What are the main pattern options?

A: Brick pattern, elastic paint pattern, granite pattern, stone pattern, mosaic pattern, tile pattern, long stone pattern, marble pattern, flat pattern, wood pattern and etc.
